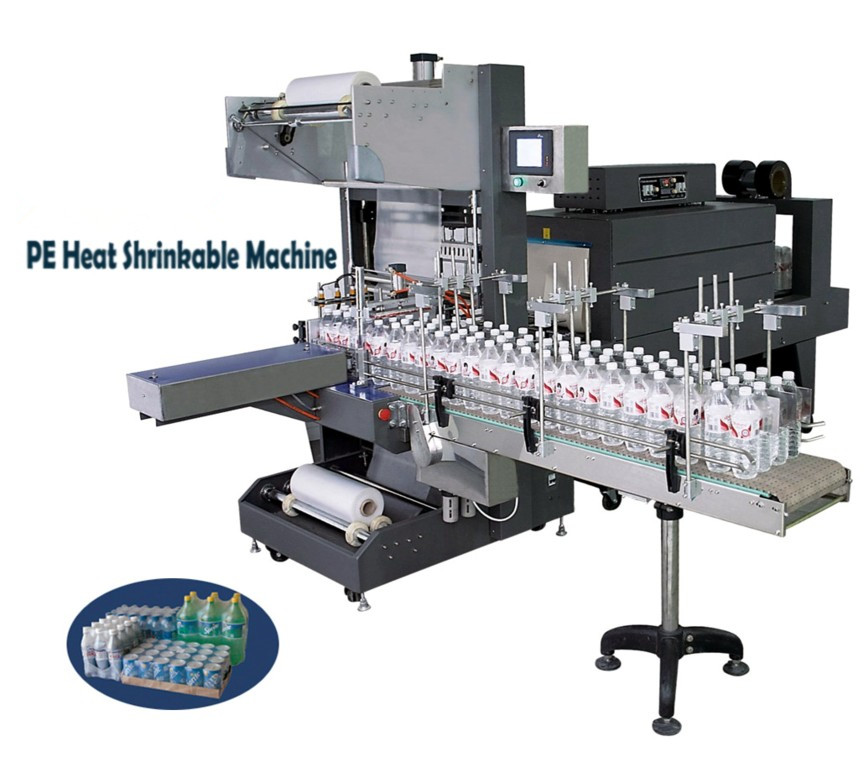

Application：Big bottles in multi-row without trays such as drinking bottles, pure water bottles, beer bottles, etc. It can be connected and work with auto filling machine.
Technical data：
|
Technical data NC-5040A
|
||
|
Sealing type
|
sleeve sealing | |
|
Power supply
|
380V/50-60Hz/3phase | |
|
Max product size
|
420(L)*300(W)*320(H)mm | |
|
Max Packing capacity
|
20 packs per minute | |
|
Film type
|
polyethylene (PE) film | |
|
Max film size
|
630 (width) *280mm(outer diameter) | |
|
Power consumption
|
20.5kW | |
|
Tunnel oven size
|
1800mm(L), entrance 600(W)*400(H)mm | |
|
Tunnel conveyor speed
|
variable，controlled by frequency converter，15m/min | |
|
Tunnel conveyor
|
chains with rotating silicon coated rods | |
|
Working height
|
800-850mm | |
|
Air pressure
|
≤0.5MPa(5 bar) | |
|
P L C
|
SIEMENS S7 | |
|
Sealing system
|
permanently heated seal bar coated with Teflon | |
|
Operating interface
|
Eview displayer | |
|
Machine material
|
carbon steel | |
|
Weight
|
1050kg | |
