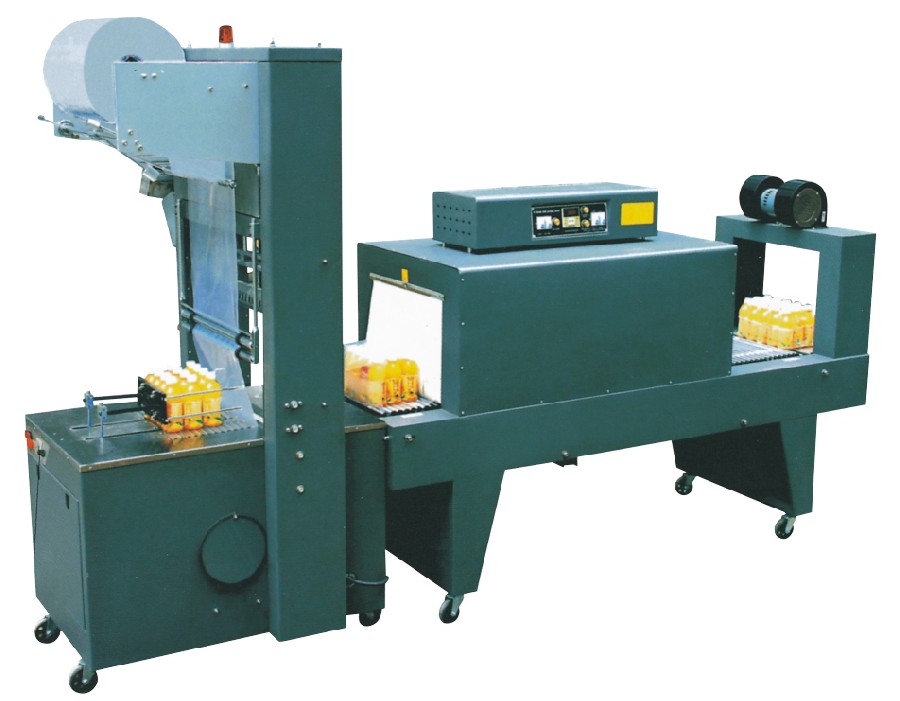

The NC series of semi-automatic shrink wrapping machine is applicable to cans, mineral water, beer, glass bottles, beverage bottles without bottom bracket or a tray shrink packaging; at the same time and temperature PE shrink machine apply,to achieve the perfect packaging effect.
Main technical parameters
| NCH-5038B(Pneumatic) Model NCH-5040A | |||
|
Supply voltage |
220-240V,50-60Hz:1.8kw |
Supply voltage |
3phase220V/380-460V 50-60Hz |
|
Packing speed |
2-5pcs/minute |
Power |
20kw |
|
Sealing and cutting time |
0.5-1.5s,0-0.6s |
Conveying speed |
0-10m/minute |
| Loading weight | 30kg |
The furnace dimensions |
1500*500*460mm |
|
Film width |
Max.500mm |
Loading weight |
30kg MAX. |
|
Film thickness |
0.04-0.12mm |
Application of shrink film |
PE,POF,PVC,PP |
|
Maximum packing size |
450*270*350mm |
Machine weight |
470KG |
| Minimux packing size | 250*60*60mm |
Ooverall dimensions |
2500*820*1680mm |
|
Overall dimensions 1020*830*1980mm |
|||
